Dodge

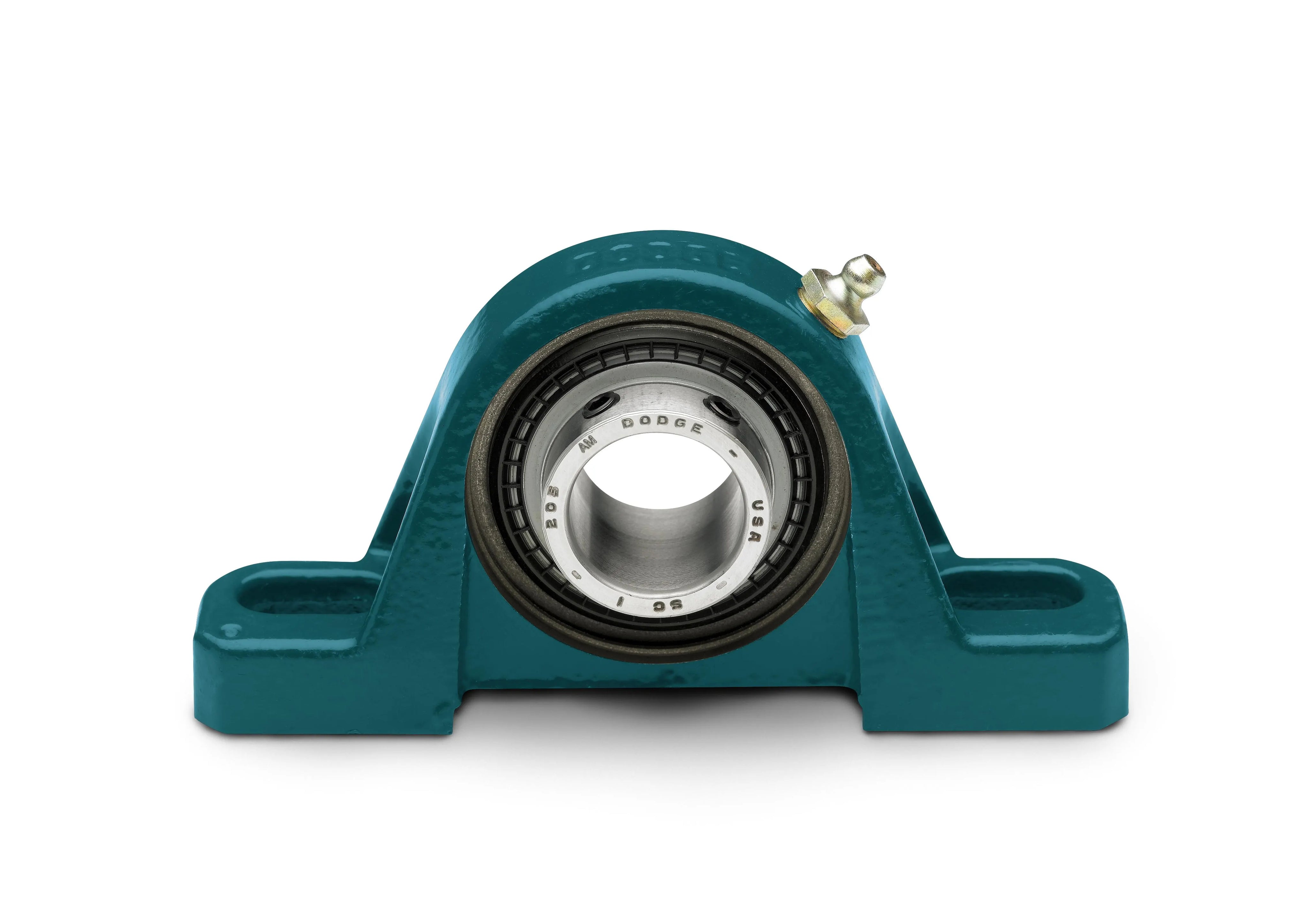

123839 P2B-SC-211 2 BOLT PILLOW BLOCK BEARING

SKU: 123819
$542.50

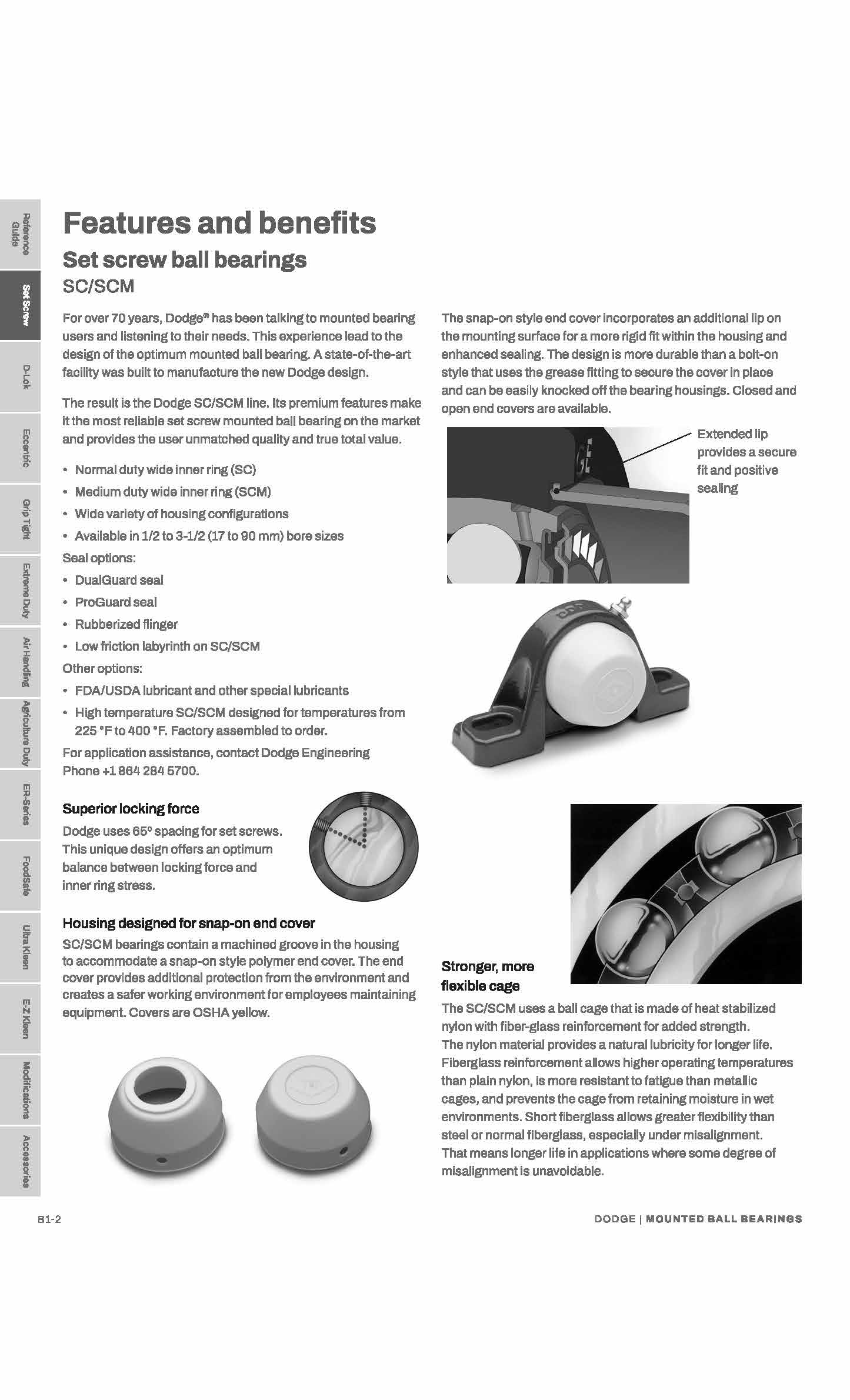

The Dodge SC/SCM line. Its premium features make it the most reliable set screw mounted ball bearing on the market and provides the user unmatched quality and true total value.

•    Normal duty wide inner ring (SC)
•    Medium duty wide inner ring (SCM)
•    Wide variety of housing configurations
•    Available in 1/2 to 3-1/2 (17 to 90 mm) bore sizes

Attributes

General
Bearing Type
 Ball
Ball Bearing Series
 214 Series
Housing Construction
 Solid
Housing Material
 Cast Iron
Housing Type
 Two-Bolt Pillow Block
Expansion Capability
 Non-Expansion (Fixed)
Shaft Attachment
 Setscrew
Insert Material
 Steel
Sensor Ready
 Adapter Required
Suitable for High Temperature
 No
Suitable For Washdown
 No
Standoff Housing
 No
Take-Up Frame Size
 LD-45,TS-300
Sealing & Lubrication
Seal Type
 Single-Lip Contact
Greasable
 Yes
Lubrication Type
 Grease
Lubrication Name
 Unirex N2
Technical
Dynamic Load Capacity
 13995 lbf
Static Load Capacity
 9838 lbf
Maximum Speed
 2000 rpm
Dimensions
Base to Center Height
 3.0000 in
Bolt to Bolt Min
 7.5000 in
Bolt to Bolt Max
 8.5000 in
Shaft Diameter
 2.6875 in
Length Through Bore
 2.5400 in
Bolt Diameter
 0.7500 in
