Home » 124103 F4B-SC-100 4 BOLT FLANGE MOUNT BEARINGS
DODGE

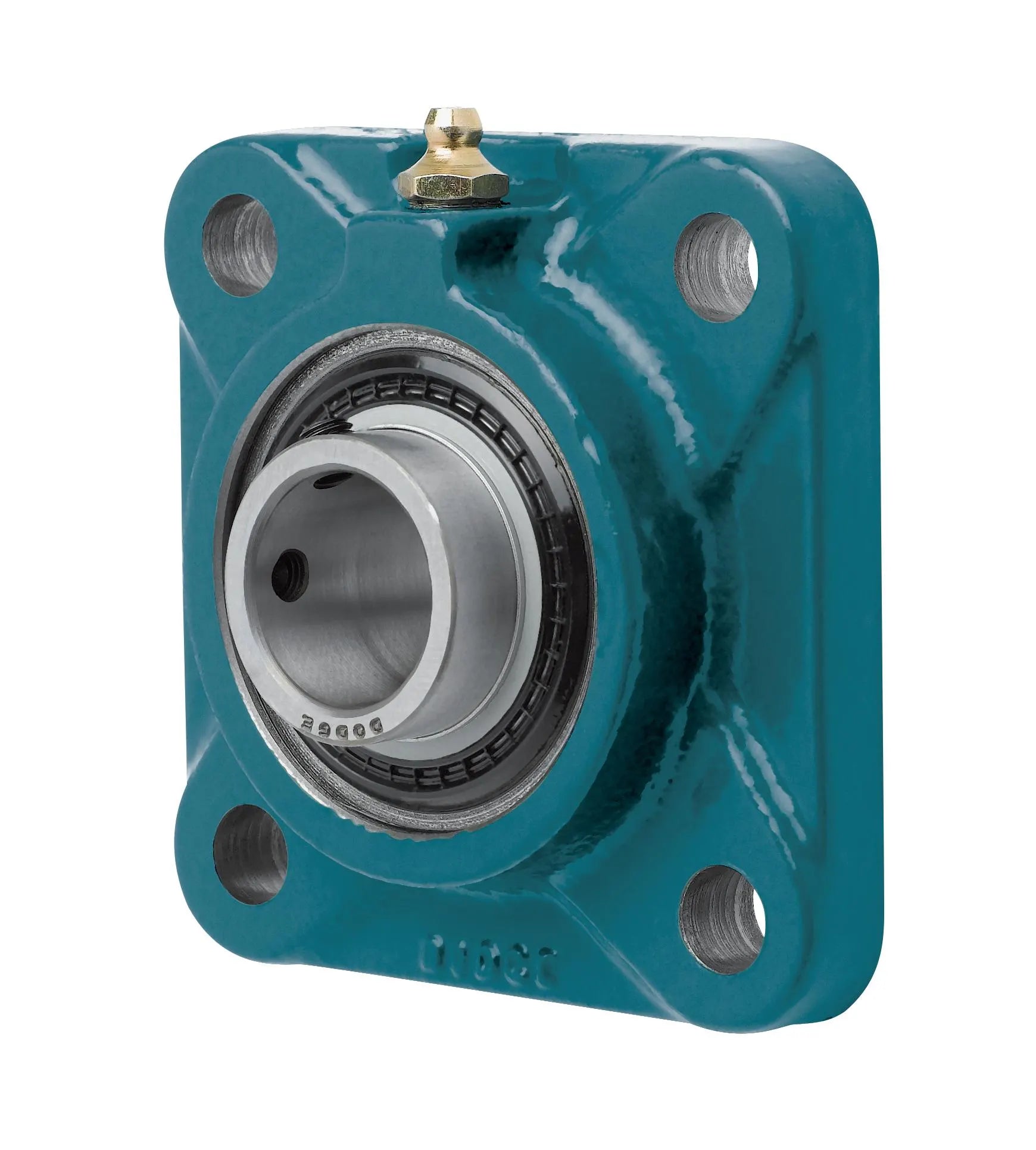

124103 F4B-SC-100 4 BOLT FLANGE MOUNT BEARINGS

SKU: 124103
$139.80

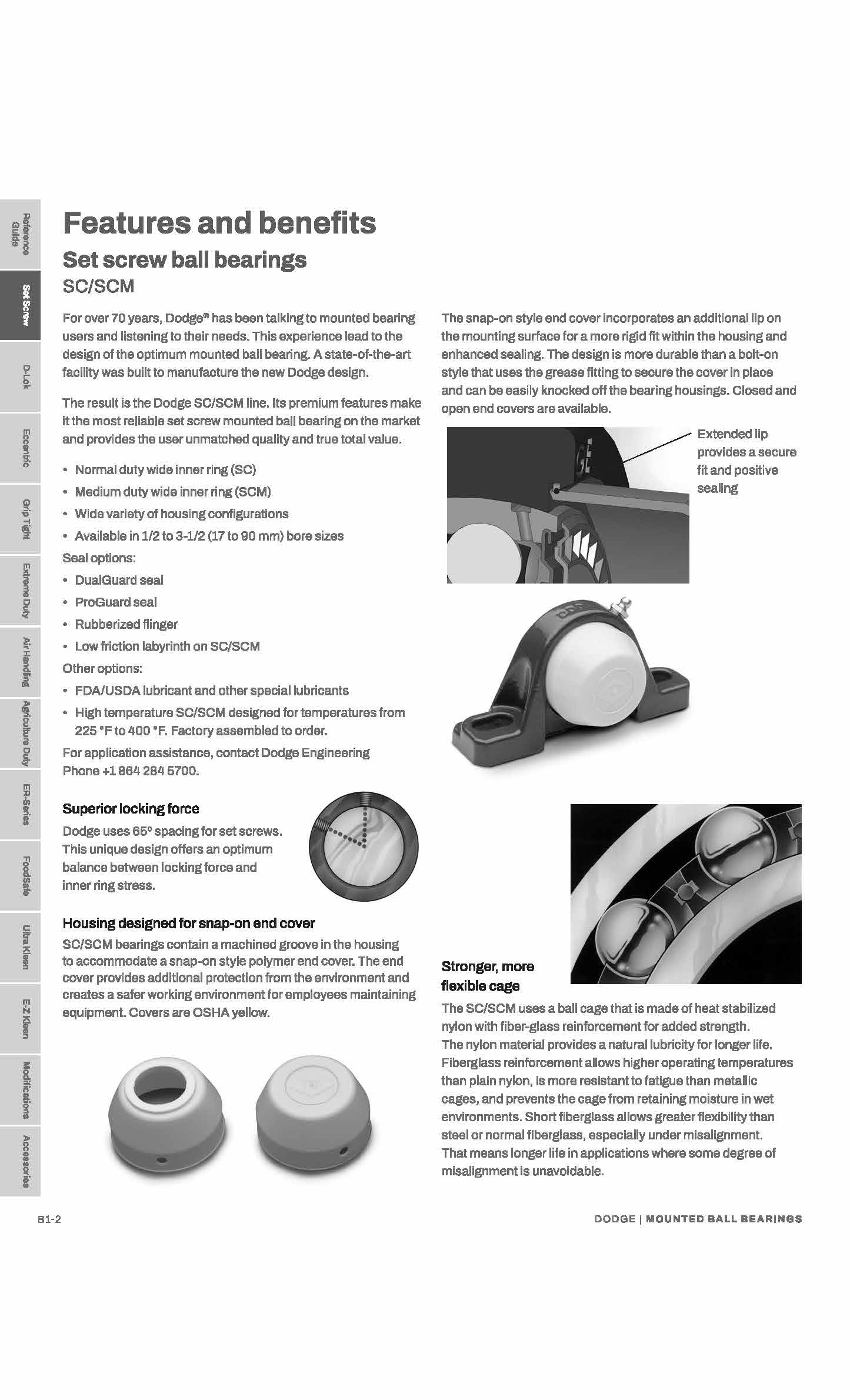

The Dodge SC/SCM line. Its premium features make it the most reliable set screw mounted ball bearing on the market and provides the user unmatched quality and true total value.

•    Normal duty wide inner ring (SC)
•    Medium duty wide inner ring (SCM)
•    Wide variety of housing configurations
•    Available in 1/2 to 3-1/2 (17 to 90 mm) bore sizes

Attributes

General
Bearing Type
 Ball
Ball Bearing Series
 205 Series
Housing Construction
 Solid
Housing Material
 Cast Iron
Housing Type
 Four-Bolt Flange (Square)
Expansion Capability
 Non-Expansion (Fixed)
Shaft Attachment
 Setscrew
Insert Material
 Steel
Sensor Ready
 Adapter Required
Suitable for High Temperature
 No
Suitable For Washdown
 No
Standoff Housing
 No
Sealing & Lubrication
Seal Type
 Single-Lip Contact
Greasable
 Yes
Lubrication Type
 Grease
Lubrication Name
 Unirex N2
Technical
Dynamic Load Capacity
 3146 lbf
Static Load Capacity
 1769 lbf
Maximum Speed
 4500 rpm
Dimensions
Bolt to Bolt Min
 2.7500 in
Bolt to Bolt Max
 2.7500 in
Shaft Diameter
 1.0000 in
Length Through Bore
 1.3400 in
Bolt Diameter
 0.4375 in
