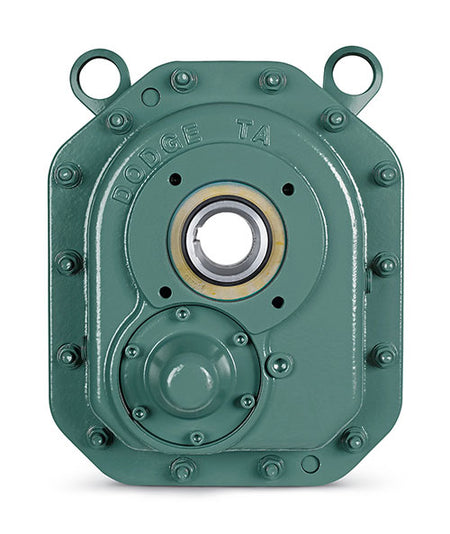

TA0107L05 TAPER BUSHED REDUCER
900004 - TA0107L05 TAPER BUSHED REDUCER - TA II Reducer
| General | |
|---|---|
| REDUCTION TYPE | Single Stage |
| GEARBOX COMPONENT TYPE | Gearbox |
| CASE SIZE | 0 |
| OUTPUT STYLE | Screw Conveyor, Tapered Bushed |
| HOUSING MATERIAL | Cast Iron |
| Sealing & Lubrication |
|
|---|---|
| SEAL TYPE | Two-Piece |
| Technical |
|
|---|---|
| MAXIMUM SPEED INPUT | 2080 rpm |
| INPUT STYLE | Belt-Driven |
| Dimensions |
|
|---|---|
| BORE LENGTH OUTPUT | 6.8300 in |
| DEPTH | 9.6900 in |
| SHAFT DIAMETER INPUT | 1.0000 in |
| SHEAVE DIAMETER MINIMUM | 9.2000 in |
| Miscellaneous |
|
|---|---|
| AGMA SIZE | 107 |
| ACTUAL RATIO | 5.2000 |
