Home » TA1107H31 TA TAPER BUSH REDUCER
Dodge

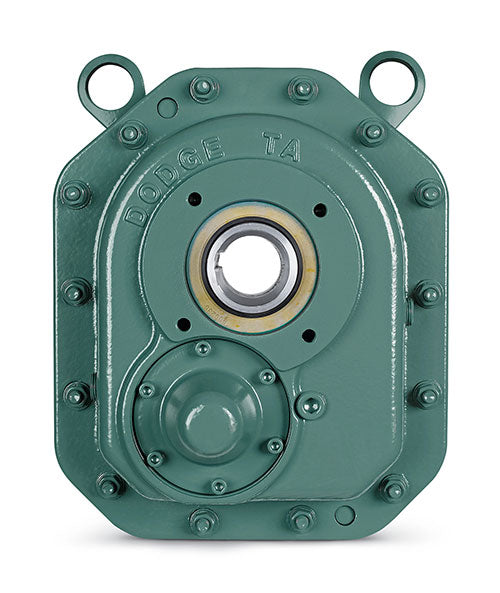

TA1107H31 TA TAPER BUSH REDUCER

SKU: 901000
$2,120.00

901000 - TA1107H31 TA TAPER BUSH REDUCER - TA II Reducer

General
REDUCTION TYPE  Double Stage
GEARBOX COMPONENT TYPE Gearbox
CASE SIZE 1
OUTPUT STYLE Screw Conveyor, Tapered Bushed
HOUSING MATERIAL Cast Iron


Sealing & Lubrication
SEAL TYPE Two-Piece


Technical
MAXIMUM SPEED INPUT 1750 rpm
INPUT STYLE Belt-Driven



Dimensions
BORE LENGTH OUTPUT 6.9500 in
DEPTH 10.0000 in
SHAFT DIAMETER INPUT 1.0000 in
SHEAVE DIAMETER MINIMUM 4.4000 in



Miscellaneous
AGMA SIZE 107
ACTUAL RATIO 30.9100
