TA9415H40 TA TAPER BUSH REDUCER

In stock
SKU: 909000
Regular price $35,200.00

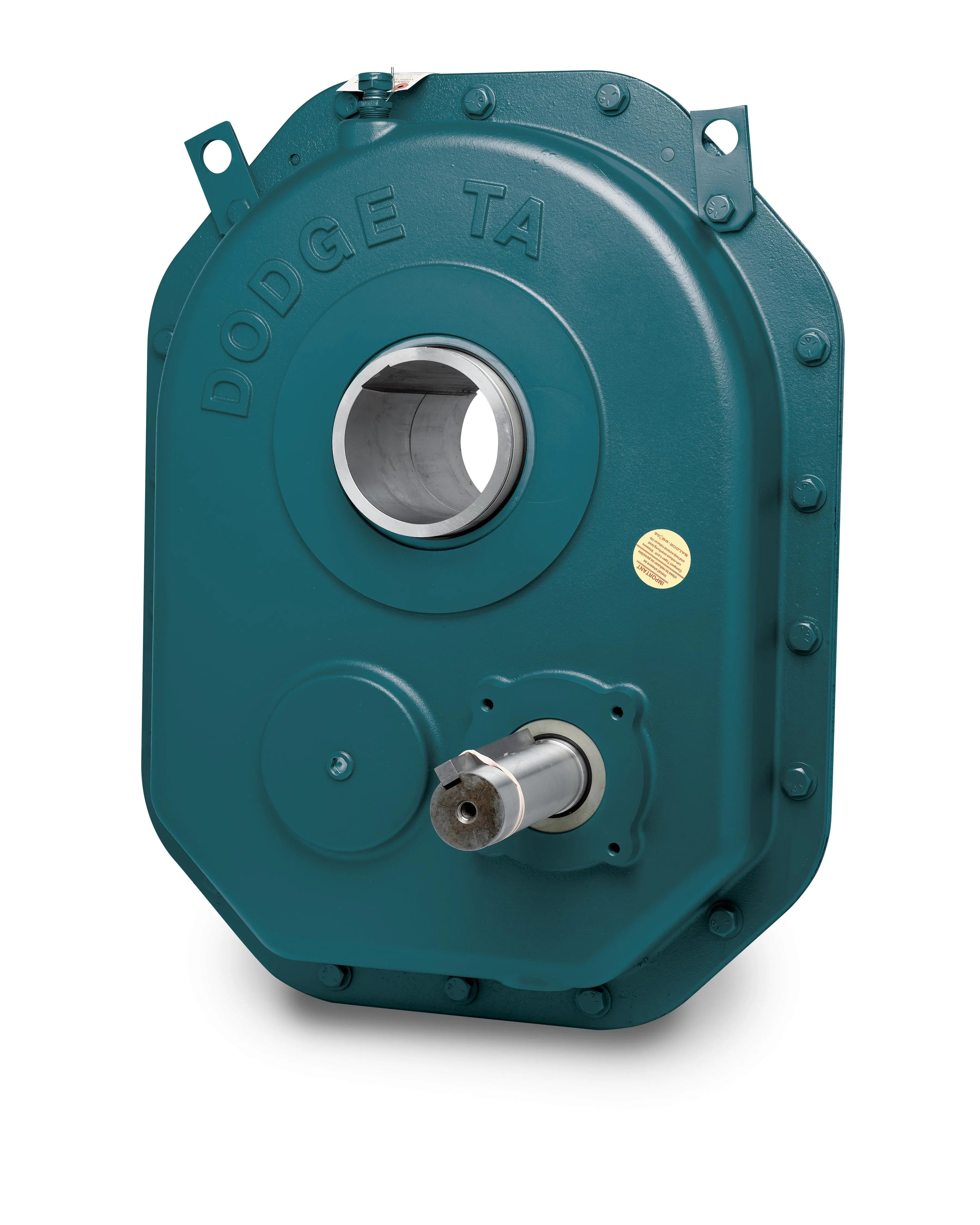

909000 - TA9415H40 TA TAPER BUSH REDUCER - TA II Reducer

General
REDUCTION TYPE  Double Stage
GEARBOX COMPONENT TYPE Gearbox
CASE SIZE 9
OUTPUT STYLE Screw Conveyor, Tapered Bushed
HOUSING MATERIAL Cast Iron


Sealing & Lubrication
SEAL TYPE Two-Piece


Technical
MAXIMUM SPEED INPUT 1970 rpm
INPUT STYLE Belt-Driven



Dimensions
BORE LENGTH OUTPUT 13.7500 in
DEPTH 21.7100 in
SHAFT DIAMETER INPUT 2.4375 in
SHEAVE DIAMETER MINIMUM 8.0000 in



Miscellaneous
AGMA SIZE 415
ACTUAL RATIO 39.4100
