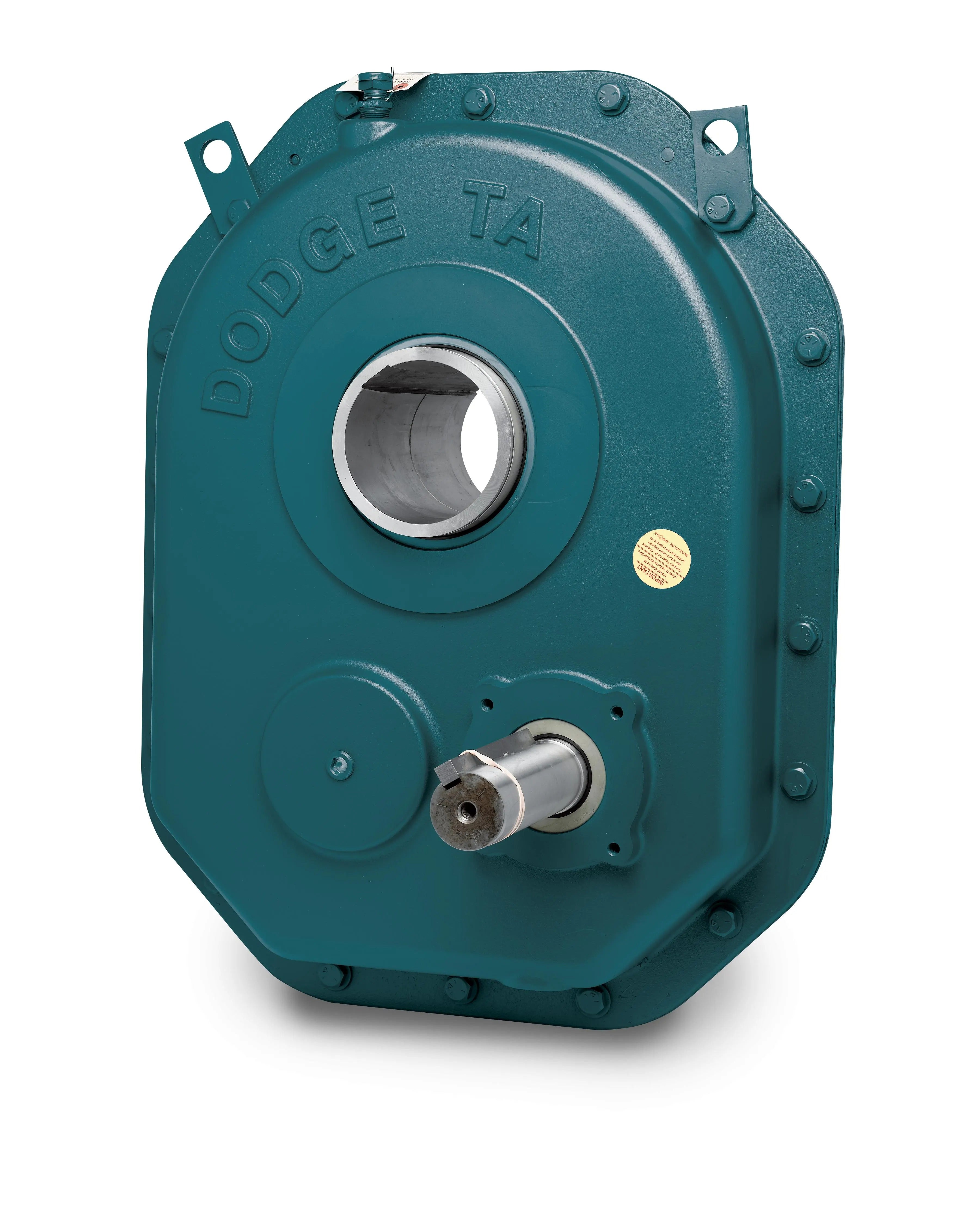

909001 - TA9415H25 TA TAPER BUSH REDUCER - TA II Reducer
| General | |
|---|---|
| REDUCTION TYPE | Double Stage |
| GEARBOX COMPONENT TYPE | Gearbox |
| CASE SIZE | 9 |
| OUTPUT STYLE | Screw Conveyor, Tapered Bushed |
| HOUSING MATERIAL | Cast Iron |
| Sealing & Lubrication |
|
|---|---|
| SEAL TYPE | Two-Piece |
| Technical |
|
|---|---|
| MAXIMUM SPEED INPUT | 2035 rpm |
| INPUT STYLE | Belt-Driven |
| Dimensions |
|
|---|---|
| BORE LENGTH OUTPUT | 13.7500 in |
| DEPTH | 21.7100 in |
| SHAFT DIAMETER INPUT | 2.4375 in |
| SHEAVE DIAMETER MINIMUM | 8.0000 in |
| Miscellaneous |
|
|---|---|
| AGMA SIZE | 415 |
| ACTUAL RATIO | 25.4400 |
