Home » A9415H15 TA TAPER BUSH REDUCER
Dodge

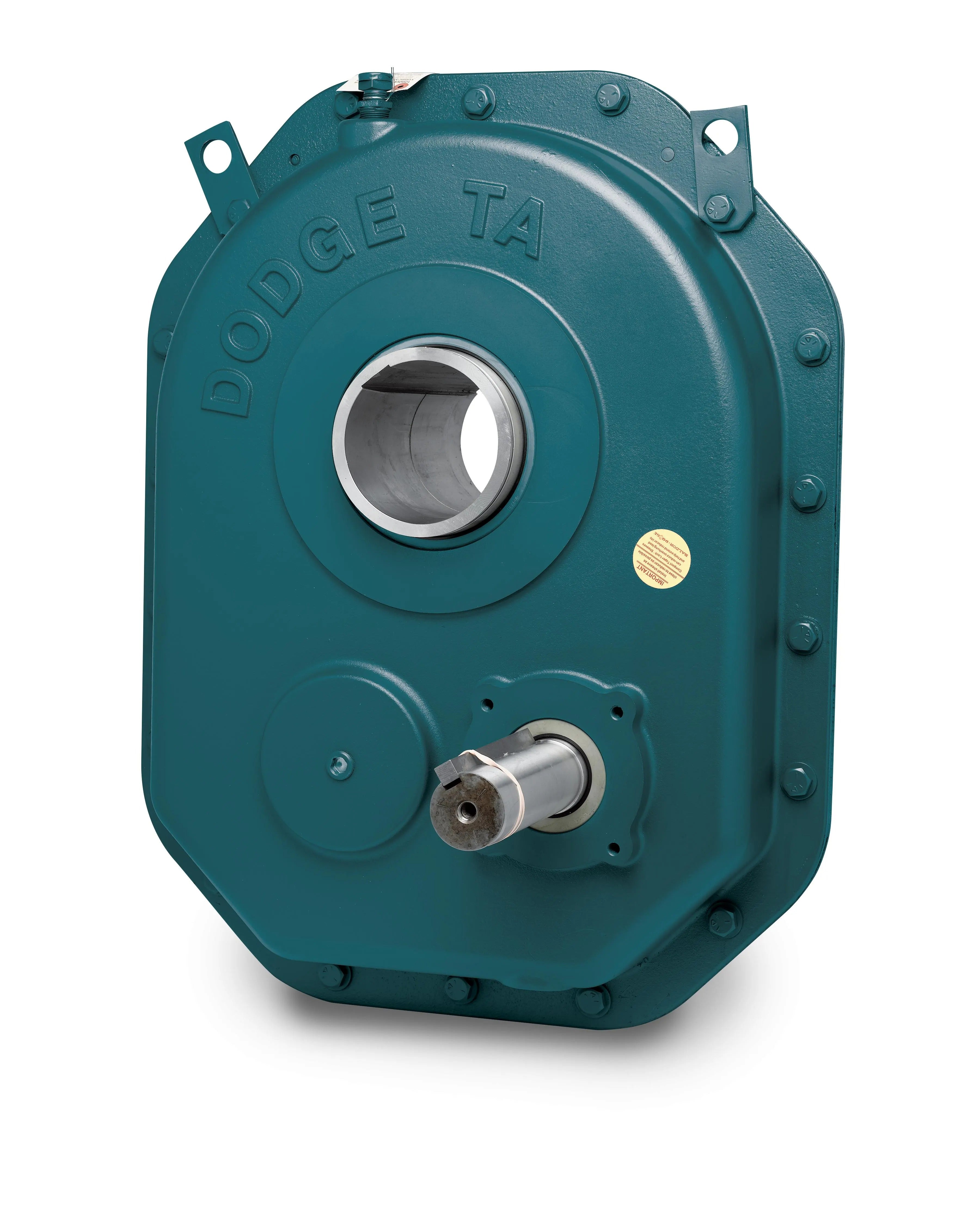

A9415H15 TA TAPER BUSH REDUCER

SKU: 909002
$35,200.00

909002 - A9415H15 TA TAPER BUSH REDUCER - TA II Reducer

General
REDUCTION TYPE  Double Stage
GEARBOX COMPONENT TYPE Gearbox
CASE SIZE 9
OUTPUT STYLE Screw Conveyor, Tapered Bushed
HOUSING MATERIAL Cast Iron


Sealing & Lubrication
SEAL TYPE Two-Piece


Technical
MAXIMUM SPEED INPUT 1812 rpm
INPUT STYLE Belt-Driven



Dimensions
BORE LENGTH OUTPUT 13.7500 in
DEPTH 21.7100 in
SHAFT DIAMETER INPUT 2.4375 in
SHEAVE DIAMETER MINIMUM 10.8000 in



Miscellaneous
AGMA SIZE 415
ACTUAL RATIO 15.1000
