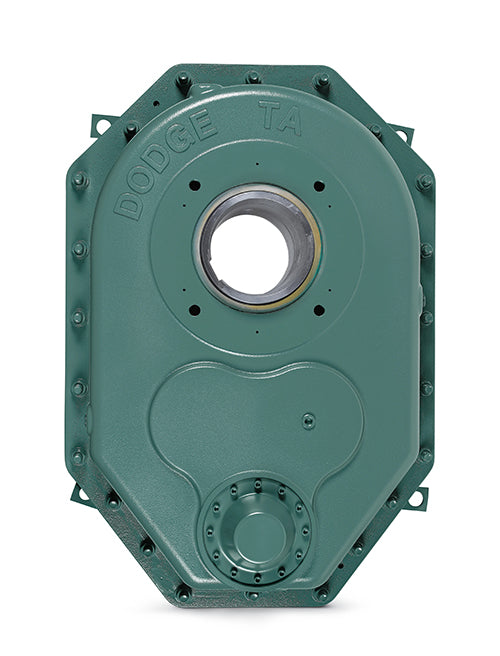

TA10507H15 TAPER BUSH REDUCER
910002 - TA10507H15 TAPER BUSH REDUCER - TA II Reducer
| General | |
|---|---|
| REDUCTION TYPE | Double Stage |
| GEARBOX COMPONENT TYPE | Gearbox |
| CASE SIZE | 10 |
| OUTPUT STYLE | Screw Conveyor, Tapered Bushed |
| HOUSING MATERIAL | Cast Iron |
| Sealing & Lubrication |
|
|---|---|
| SEAL TYPE | Two-Piece |
| Technical |
|
|---|---|
| MAXIMUM SPEED INPUT | 1811 rpm |
| INPUT STYLE | Belt-Driven |
| Dimensions |
|
|---|---|
| BORE LENGTH OUTPUT | 15.4700 in |
| DEPTH | 22.8000 in |
| SHAFT DIAMETER INPUT | 2.6875 in |
| SHEAVE DIAMETER MINIMUM | 11.3000 in |
| Miscellaneous |
|
|---|---|
| AGMA SIZE | 507 |
| ACTUAL RATIO | 15.0900 |
