Home » TA10507H40 TPR BSH REDUCER SPECIAL
Dodge

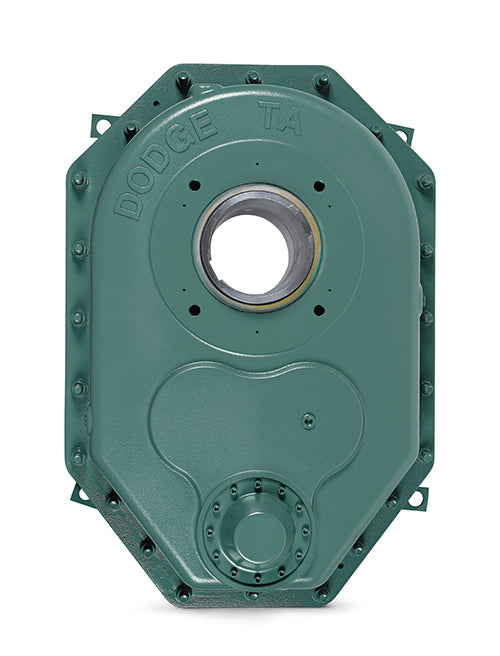

TA10507H40 TPR BSH REDUCER SPECIAL

SKU: 910004
$61,030.40

910004 - TA10507H40 TPR BSH REDUCER SPECIAL - TA II Reducer

General
REDUCTION TYPE  Double Stage
GEARBOX COMPONENT TYPE Gearbox
CASE SIZE 10
OUTPUT STYLE Screw Conveyor, Tapered Bushed
HOUSING MATERIAL Cast Iron


Sealing & Lubrication
SEAL TYPE Two-Piece


Technical
MAXIMUM SPEED INPUT 1984 rpm
INPUT STYLE Belt-Driven



Dimensions
BORE LENGTH OUTPUT 15.4700 in
DEPTH 22.8000 in
SHAFT DIAMETER INPUT 2.6875 in
SHEAVE DIAMETER MINIMUM 8.5000 in



Miscellaneous
AGMA SIZE 507
ACTUAL RATIO 39.6800
