Dodge

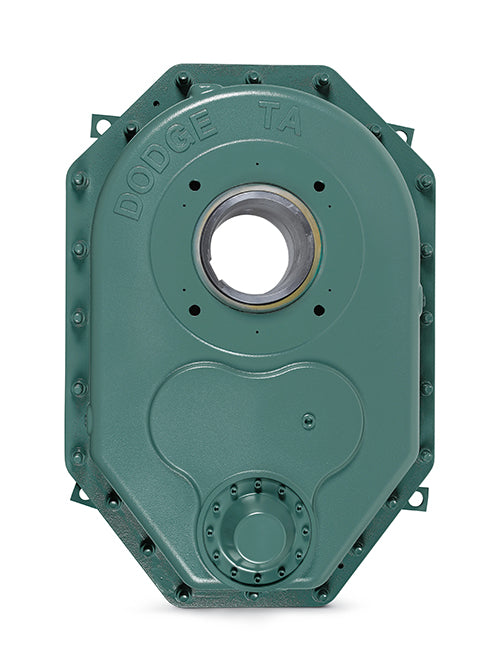

TA12608H40 TA TAPER BUSH REDUCER

SKU: 912000
$89,040.00

912000 - TA12608H40 TA TAPER BUSH REDUCER - TA II Reducer

General
REDUCTION TYPE  Double Stage
GEARBOX COMPONENT TYPE Gearbox
CASE SIZE 12
OUTPUT STYLE Screw Conveyor, Tapered Bushed
HOUSING MATERIAL Cast Iron


Sealing & Lubrication
SEAL TYPE Two-Piece


Technical
MAXIMUM SPEED INPUT 1909 rpm
INPUT STYLE Belt-Driven



Dimensions
BORE LENGTH OUTPUT 18.3300 in
DEPTH 26.2300 in
SHAFT DIAMETER INPUT 2.6875 in
SHEAVE DIAMETER MINIMUM 17.1000 in



Miscellaneous
AGMA SIZE 608
ACTUAL RATIO 38.1900
