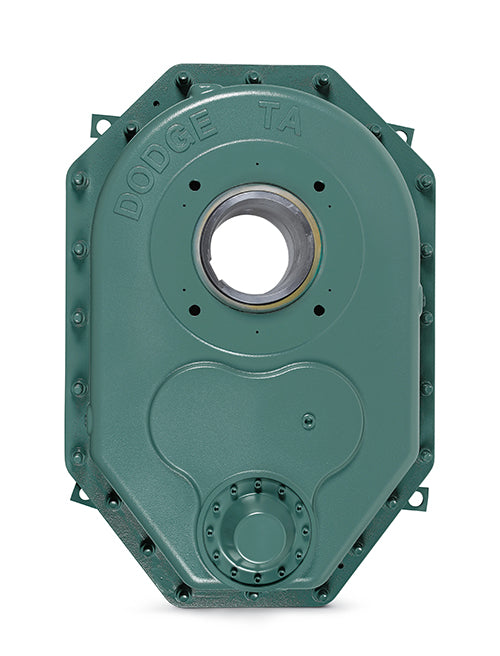

TA12608H25 TA TAPER BUSH REDUCER

SKU: 912001
$89,040.00

912001 - TA12608H25 TA TAPER BUSH REDUCER - TA II Reducer

General
REDUCTION TYPE  Double Stage
GEARBOX COMPONENT TYPE Gearbox
CASE SIZE 12
OUTPUT STYLE Screw Conveyor, Tapered Bushed
HOUSING MATERIAL Cast Iron


Sealing & Lubrication
SEAL TYPE Two-Piece


Technical
MAXIMUM SPEED INPUT 2002 rpm
INPUT STYLE Belt-Driven



Dimensions
BORE LENGTH OUTPUT 18.3300 in
DEPTH 26.2300 in
SHAFT DIAMETER INPUT 2.6875 in
SHEAVE DIAMETER MINIMUM 9.5000 in



Miscellaneous
AGMA SIZE 608
ACTUAL RATIO 25.0300
