CONTINENTAL PF375 Supreme, 42" WIDE x 308 FT LONG
CONTINENTAL PF375 Supreme, 42" WIDE x 308 FT LONG (ESTIMATED SHIP WEIGHT - 2227 LBS)

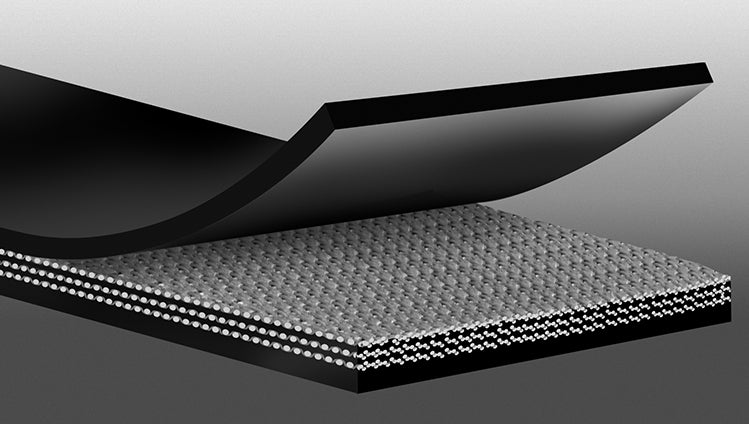

Pathfinder Plus is a reinforced belt designed to stand up to the unique operating conditions of grain handling facilities. Pathfinder Plus’ exceptionally low electrical resistance and superior oil resistance properties provide excellent operational safety and long life.

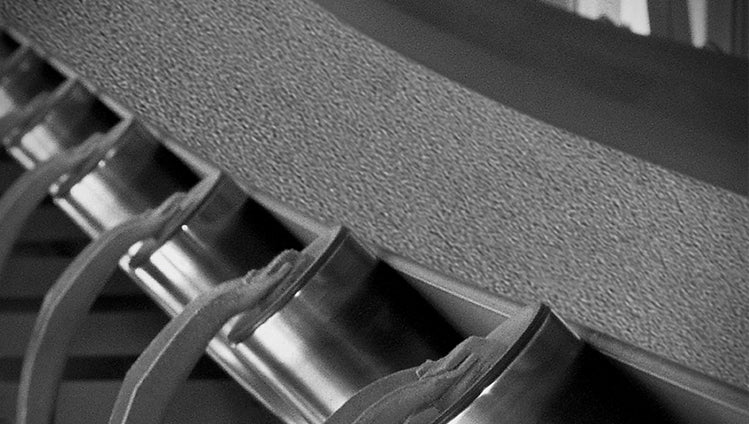

High ultimate strength
Pathfinder Plus is designed to withstand harsh operating conditions.
Low belt elongation
Low belt elongation increases productivity and minimizes downtime spent re-splicing grain belting. Permanent elongation averages 0.8% at 100% of rated operating tension.
Oil resistant covers
Pathfinder Supreme covers provide superior oil resistance to the potentially damaging effects of crushed and whole soybeans, oily grains and mineral oil dust suppressant sprays.
Static conductive, low electrical resistance, flame resistance
Pathfinder Plus belts exceed federal OSHA and ISO standards at the time of manufacture and offer an exceptionally low electrical resistance far below the ederal OSHA and ISO standard of 300 megohms. Internal testing ensures that belts meet or exceed the U.S. MSHA/ARPM 30 CFR 18.65 requirement for flame resistance.
Excellent bolt holding capabilities
High-strength fill cords provide excellent resistance to bolt pull-out. Excellent bolt holding ability enables the Pathfinder Plus carcass to securely hold the buckets in elevator leg service.
Excellent adhesion values
Oil resistant skim coats, combined with our fabric treatment process, provide excellent adhesion values. Vulcanized splice life is maximized, and edge damage due to contact with conveyor structure is minimized

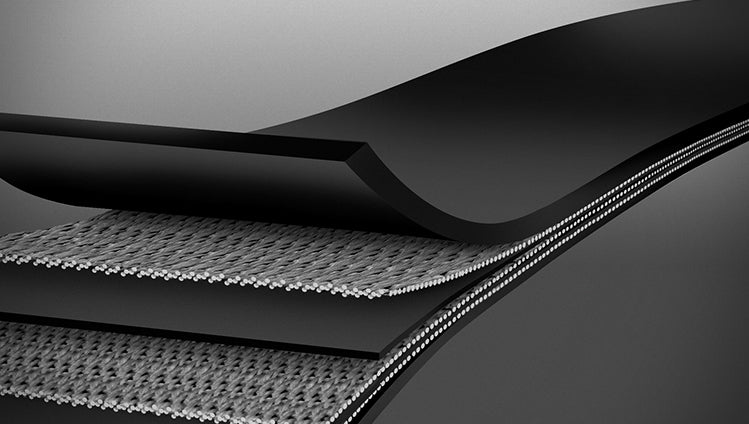

Flexible crimped warp fabric design
Crimped warp design allows the outer ply to lengthen around small pulleys without interfering with the integrity of the warp cords. This flexibility contributes to longer splice life.
