HB-21 BEARING SENSOR

HB21

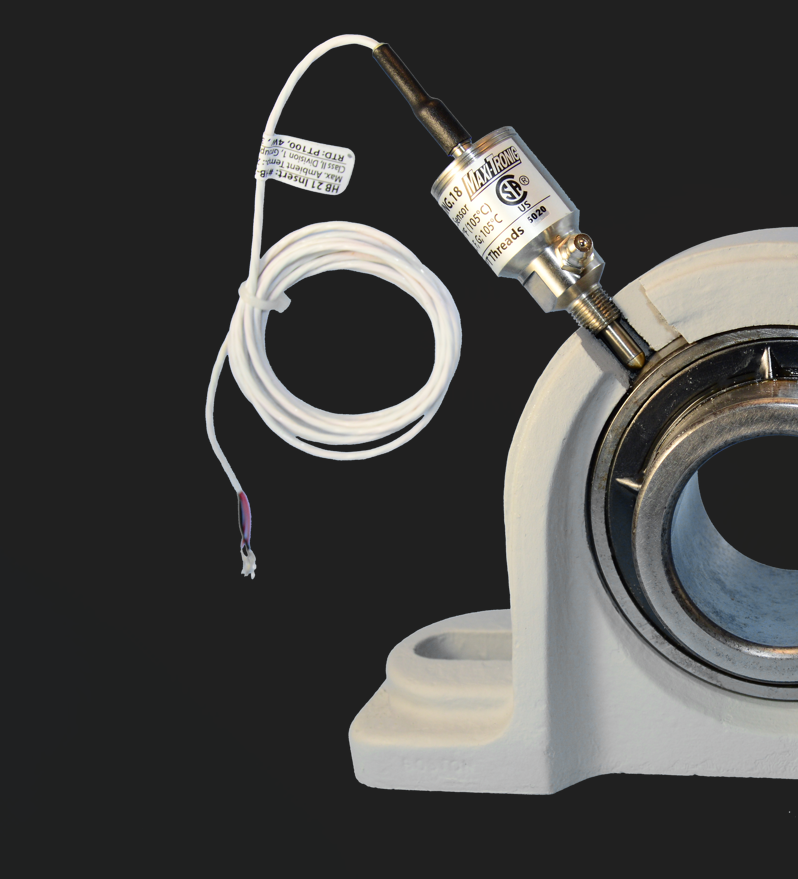

The HB21 Bearing Temperature Sensor screws in to replace an existing grease fitting. Allows continued greasing of the bearing.

• CSA Certified Class II, Division 1, Groups E,F,G
• 1/8″ and 1/4″ NPT sizes
• Fully adjustable length. Base lengths available: 3″, 4.5″ and 6″
• Available in the following sensor types:
  • Thermocouple: Type T and J
  • RTD: PT100
  • Digital: 1-Wire

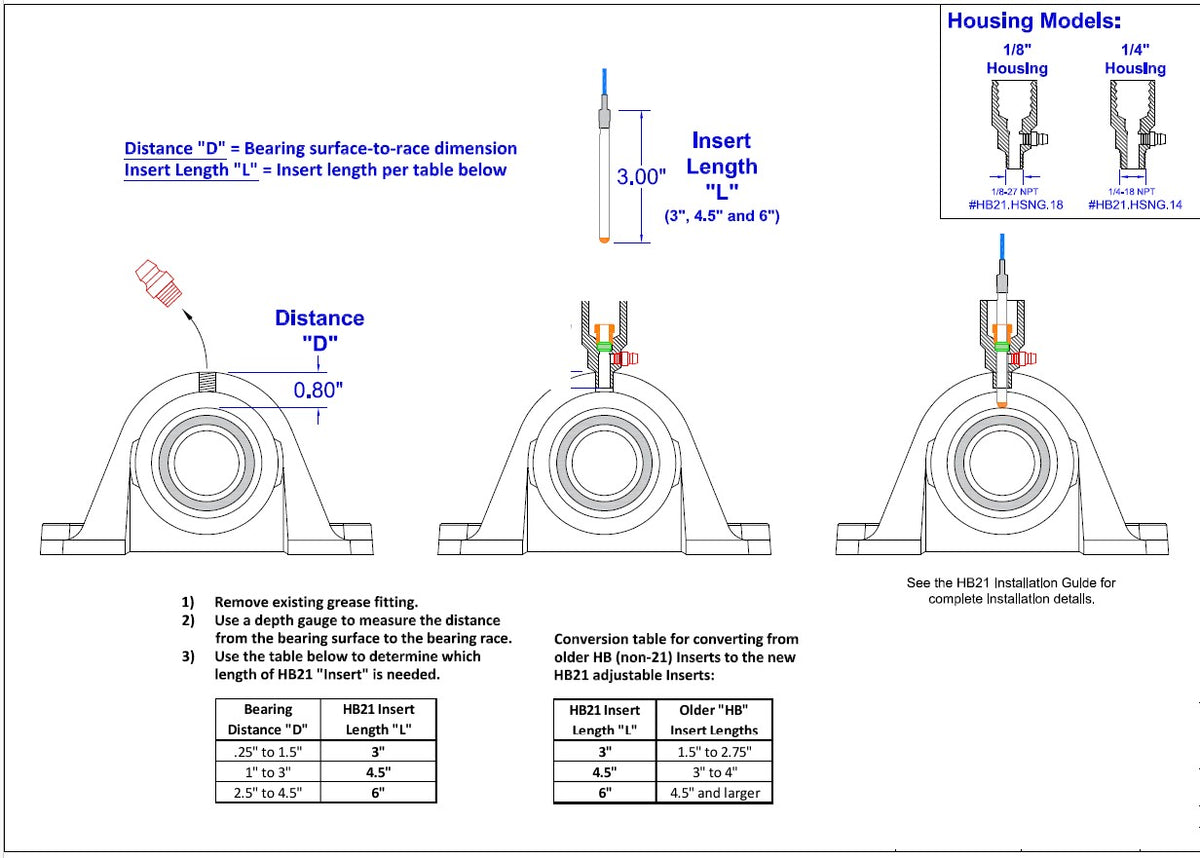

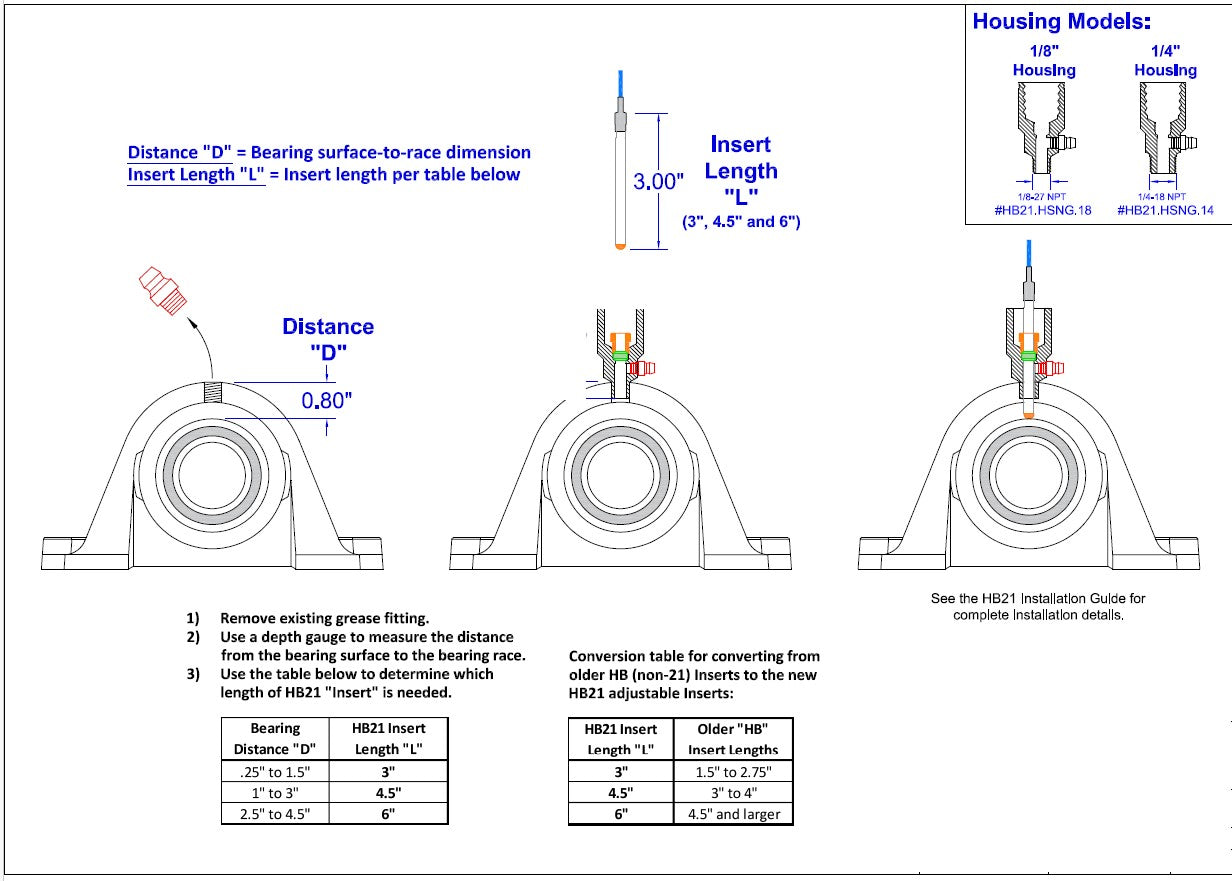

Not sure which insert length you need?  Check out the selection chart photo for guidance.
