Proxswitch 4-Wire P800 Kit

APPLICATION
The P800 Proxswitch is an inductive sensor designed to detect
shaft speed, shaft position, gate position, or object presence.

METHOD OF OPERATION
The P800 Proxswitch is a CSA Class II, Division 1 approved  limit switch style proximity sensor, which works on the damped   oscillator principle. No contact is made between the sensor and the object being monitored. The P800 will detect a ferrous  object at a maximum distance of 1/2” and a non-ferrous object  at 5/16”

4-Wire P800 Kit Includes:

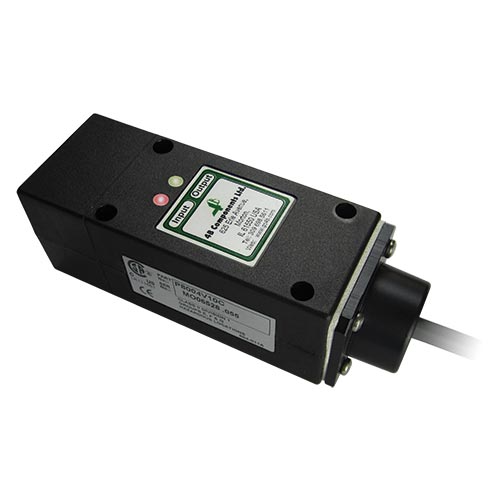

1 x P8004V10C Proxswitch (Opto-Isolated Bilateral FET Version)
1 x WG1-4B-4 Whirligig® (Target/Bracket/Guard)
1 x MAG2000  Mag-Con™ Magnetic Connector for Whirligig
