Morris Compression Couplings

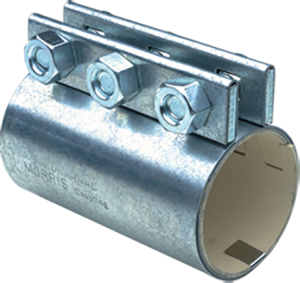

The "Original" Morris compression coupling designed to join pipe and tubing for pneumatic conveying systems.
- Easy to install
- Pipe and tube sizes 1/2" through 48"
- Standard construction is heavy gauge zinc-plated steel
- Also available in stainless steel and aluminum

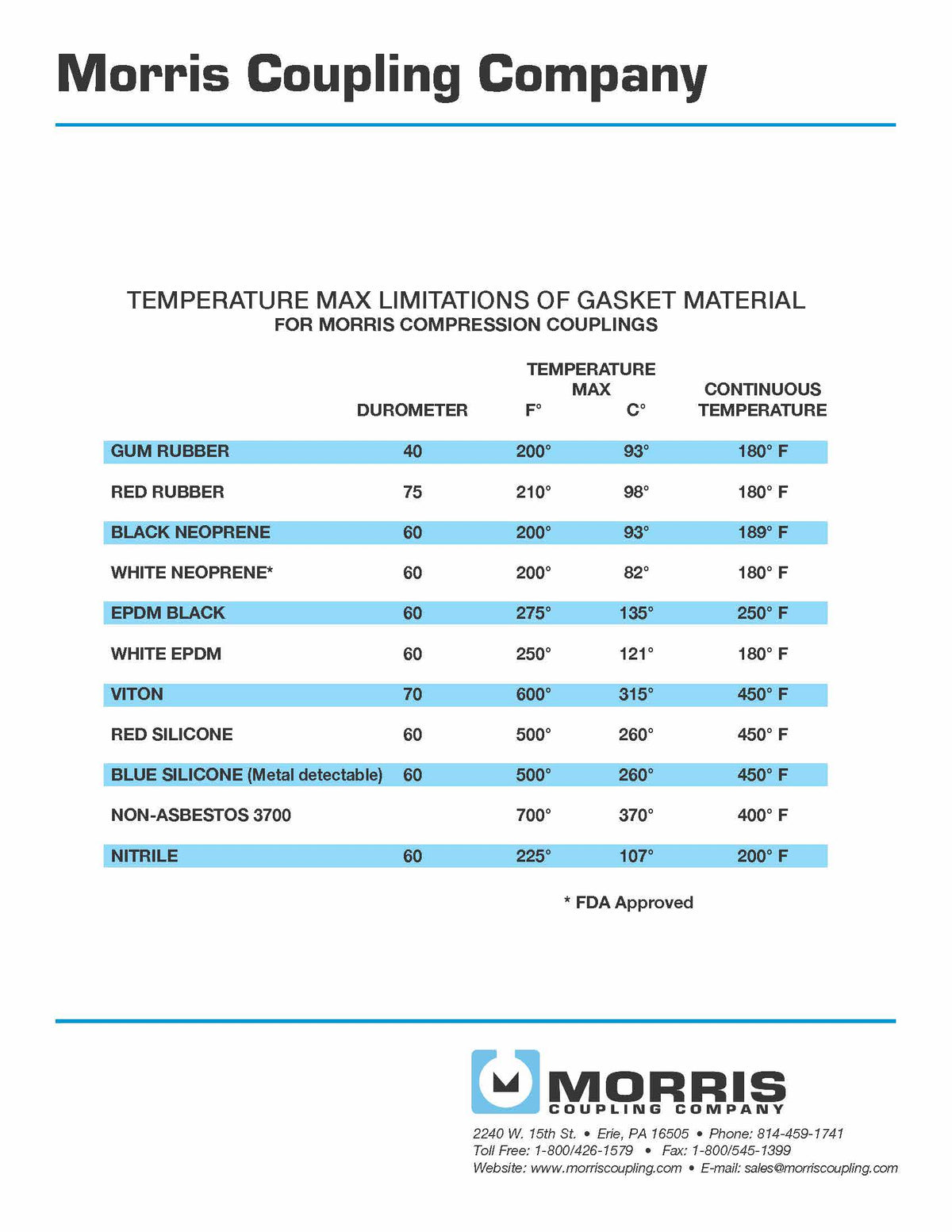

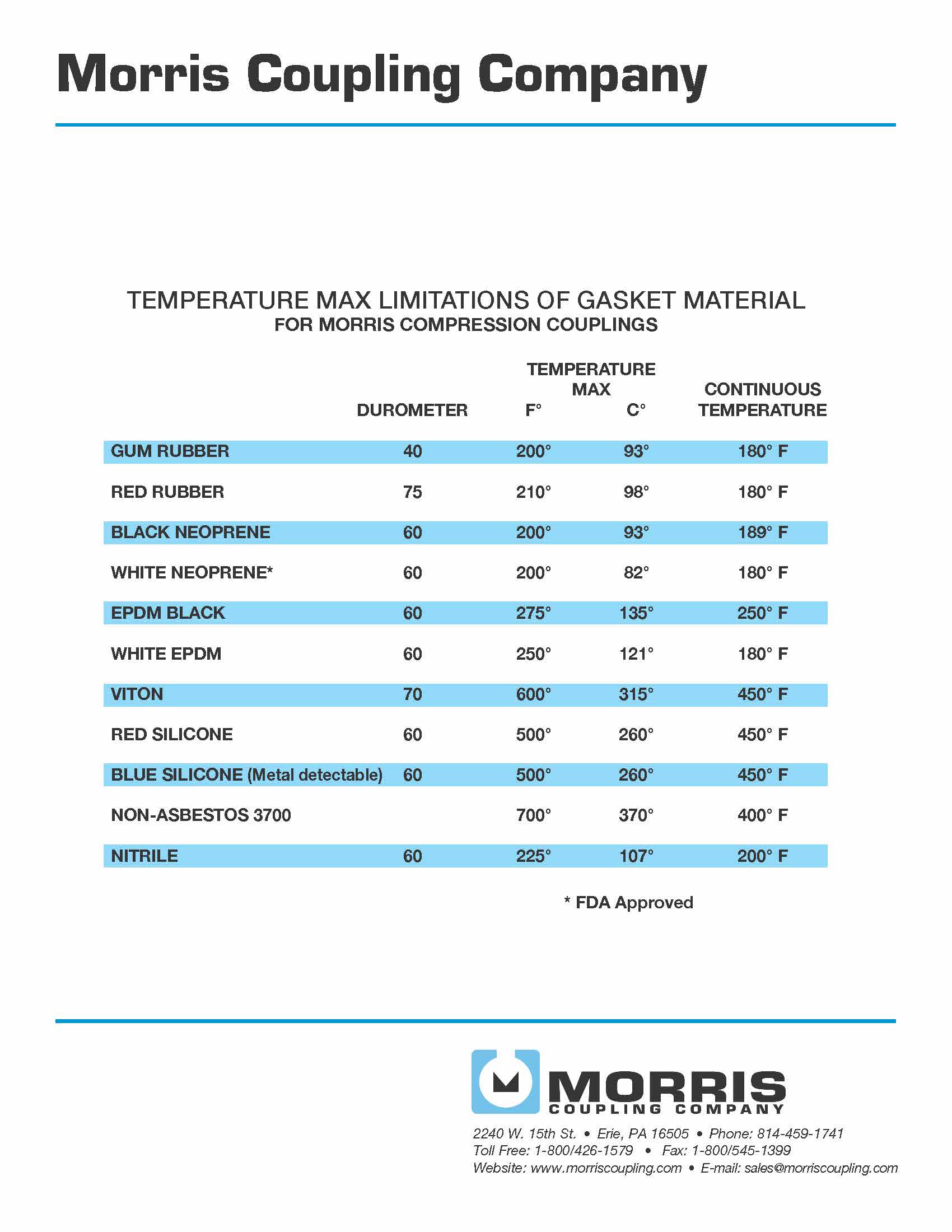

- Gasket materials: black and white neoprene, silicone and others
- Static conductive grounding strip is standard

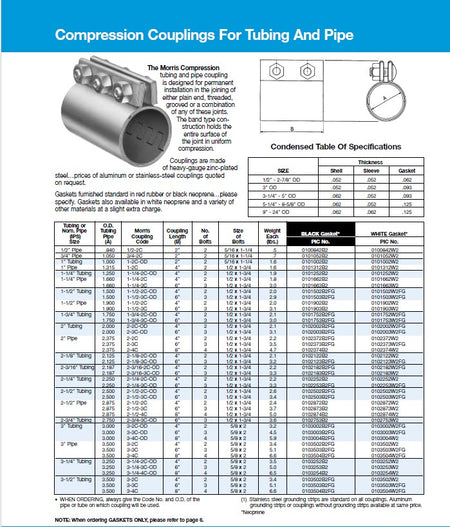

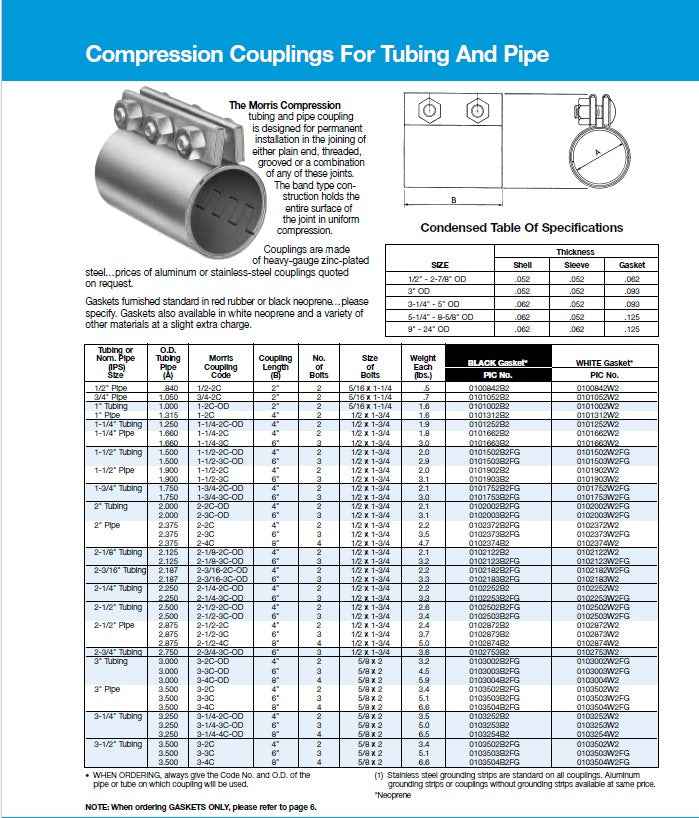

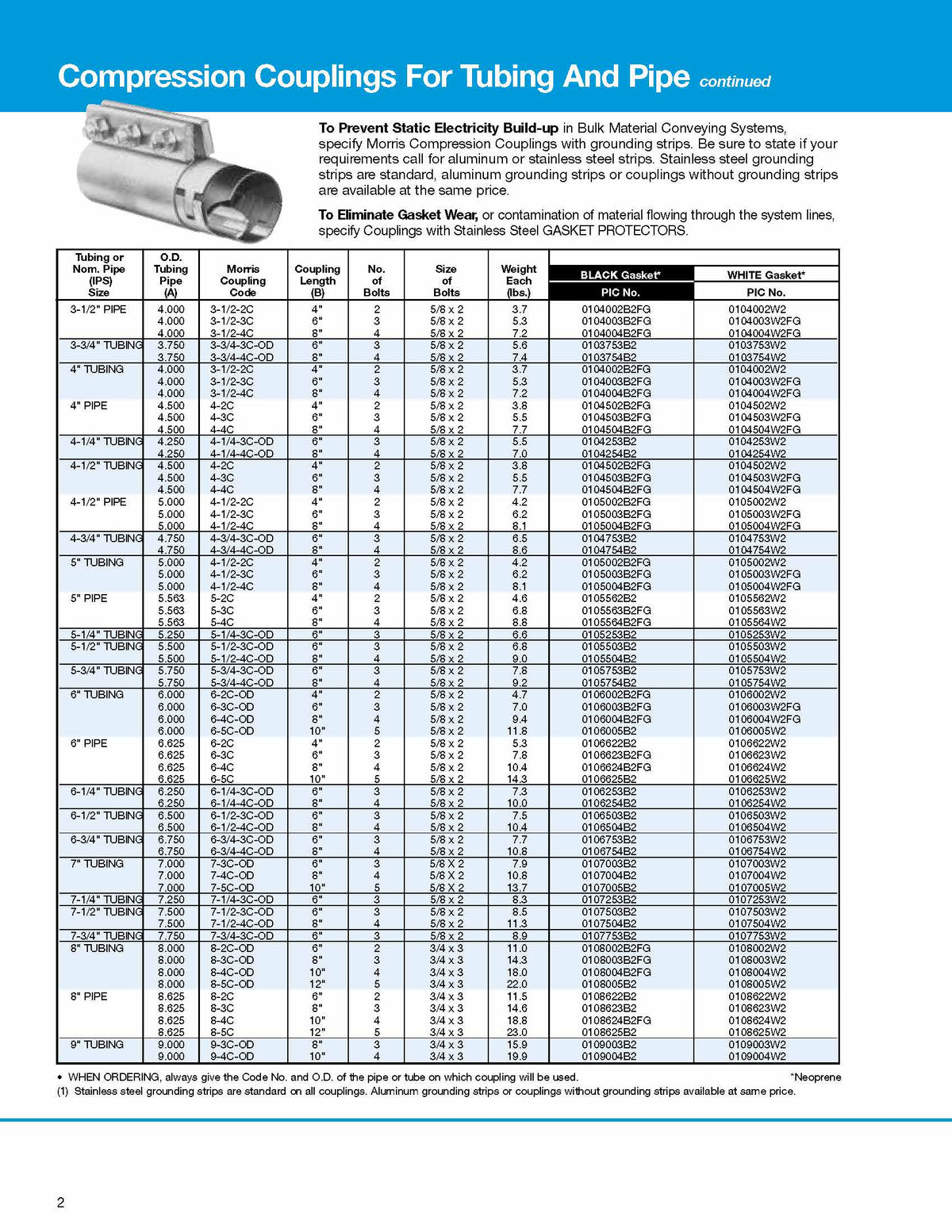

Condensed Table Of Specifications
| Size | Thickness | ||
|---|---|---|---|
| Shell | Sleeve | Gasket | |
| 1/2" - 2-7/8" OD | .052 | .052 | .062 |
| 3" OD | .052 | .052 | .093 |
| 3-1/4" - 5" OD | .062 | .052 | .093 |
| 5-1/4" - 8-5/8" OD | .062 | .052 | .125 |
| 9" - 24" OD | .062 | .062 | .125 |
