SIZE 190 BOLT SOLID PLATE FASTENERS - STAINLESS STEEL OR STEEL 25/BOX

FLEXCO^® SIZE 190

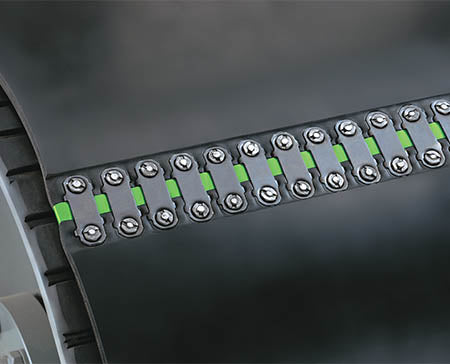

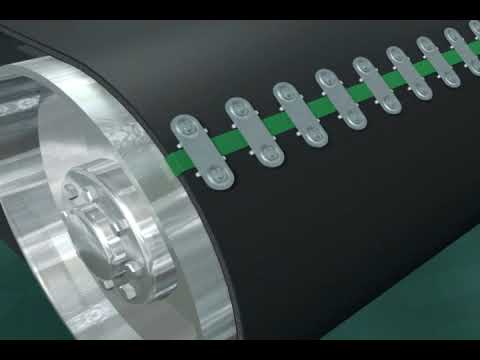

Available in various metal options, Flexco^® Bolt Solid Plate Fastening System Size 190 also comes in VP^™, featuring a rubber-covered top plate for increased impact protection and conveyor component compatibility.

FASTENER DETAILS

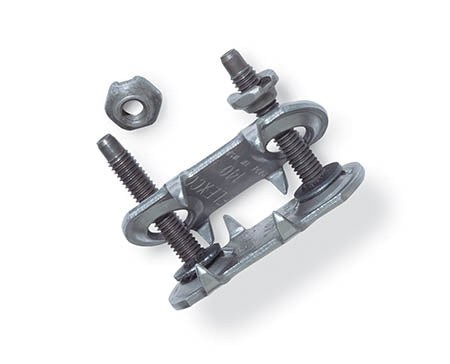

• Design: Solid plate; piloted bolts with tapered tips
• Belt Thickness: 5/16” to 9/16” (8 mm to 14 mm)
• Minimum Pulley Diameter: 18” (460 mm)
• Maximum PIW: 375 (65 kN/m)
• Belt Widths: 12”, 18”, 24”, 30”, 36”, 42”, 48”, 54”, 60”, 72” (300 mm, 450 mm, 600 mm, 750 mm, 900 mm, 1050 mm, 1200 mm, 1350 mm, 1500 mm, 1800 mm)
• Metal Selection: Stainless Steel, MegAlloy^®, VP^™ rubber covered balance steel, VP^™ rubber covered MegAlloy^®, Promal^®, Everdur, Steel

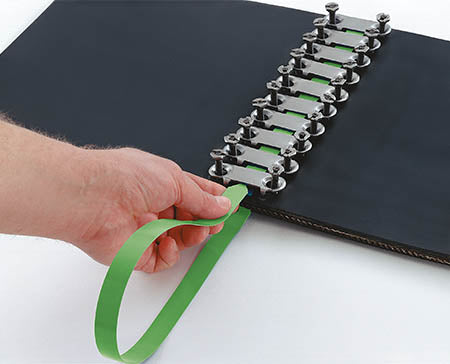

• Installation Method: Hammer or power tool and templet
