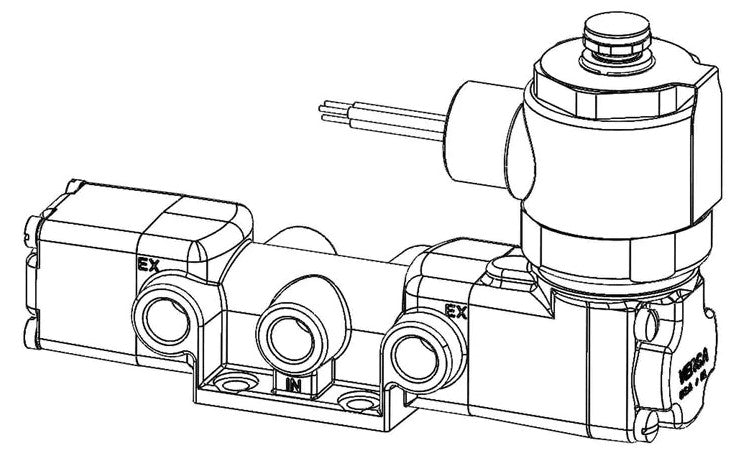

Versa Valve, 4-Way, Brass, 120V60Hz, 5/2

Versa V Series Directional Control Valve

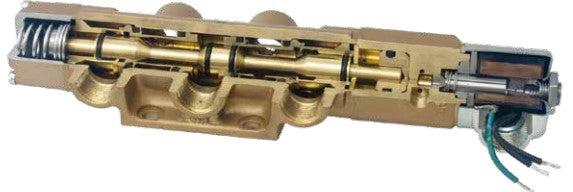

The VERSA brass V Series valves are suited for nearly all pneumatic directional control applications. The V Series is designed for trouble-free performance even in the harshest environments. The integrity of design makes them adaptable to a maximum number of applications with a minimum number of components. This is possible through the modular approach to valve construction, which allows valve bodies and actuating devices to be interchanged end for end and valve for a valve in many cases. The modular approach to this valve design makes thousands of valve variations possible, allowing the customer to "build" his valve to fit his unique specifications.

Product Featured on this page is:

• Pneumatic service to 200 psi (14 bar)
• Left end Inlet - Spring Return. Spring pushes valve spool
• Right End Inlet -  Solenoid-Pilot/2 position
• SIDEPORTED – INPILOT Body has an auxiliary internal passage to supply INPilot** type solenoid and pilot actuators.  Internal auxiliary porting supplies pressurized medium being controlled to pilot, solenoid- pilot or differential pilot return.

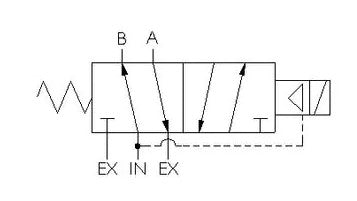

• Standard flow pattern: inlet alternately open to one cylinder port; opposite cylinder port alternately open to exhaust.
• Hazardous, weather protected, UL/CSA

Product Features

• Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
• Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range

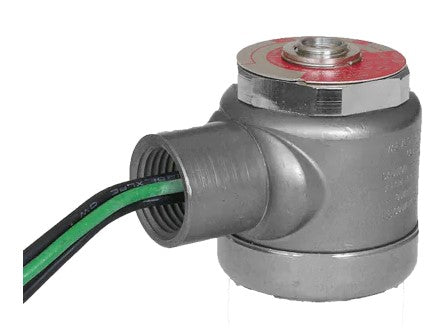

Solenoid Features

• Solenoid coil connection: 1/2" NPT female conduit with 24" wires

100% Leak Tested • 10-Year Warranty
